You plug in the scan tool. Nothing. No codes.

​

You scroll through the data parameters. Nothing stands out.

​

No Freeze Frame. No breadcrumbs. No symptoms but a very intermittent, and equally very vague transmission shift service warning message on the dash which you haven't even witnessed yourself.

​

That's when it starts—the tightening in your chest, the sweat on your forehead, the rising anxiety.

​

The vehicle has already been down for months, and the customer's patience is worn thinner than brake pads grinding into the rotor, long past their warning squeal.

​

How would you handle this?

Well, this is how it went down for me.

​

First, the parts cannon. An electronic parking brake switch here. A column shifter assembly there. Next up both parking brake actuators as well as a transmission valve body.

​

Educated guesses can only go so far sometimes.

​

But after weeks of digging and monitoring various data values, the stars began to align.

​

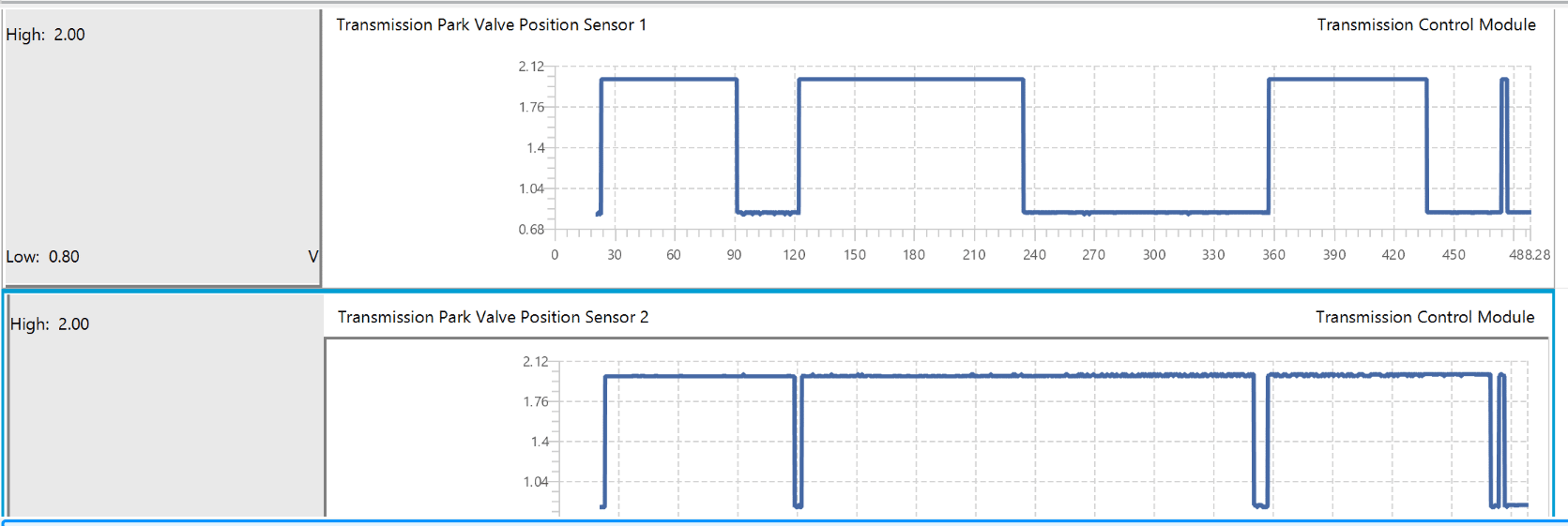

While driving the vehicle and monitoring the Transmission Park Valve Position Sensor Data Parameters, I noticed an odd anomaly after the engine restarted during an auto-stop-start event.

​

​

There are two redundant Transmission Park Valve position sensors inside this transmission. These two are supposed to match each other and read the same value of 'Park' when the gear selector is in 'Park', and 'Out of Park' while driving.

​

Except they didn't after an Auto-Stop-Start restart event. And only after the engine restarted did I notice one of the sensors read 'Park' while the other sensor read 'Out of Park'.

​

After cycling the key to OFF then back ON, these two sensors matched each other again.

​

Huh???

​

Must have been a glitch, I thought. Except it kept happening.

​

I drove the vehicle through at least 25 different auto-stop-start events to try to figure out what was happening. But it made no sense—why would these sensors not match ONLY after the engine auto-restarted?

​

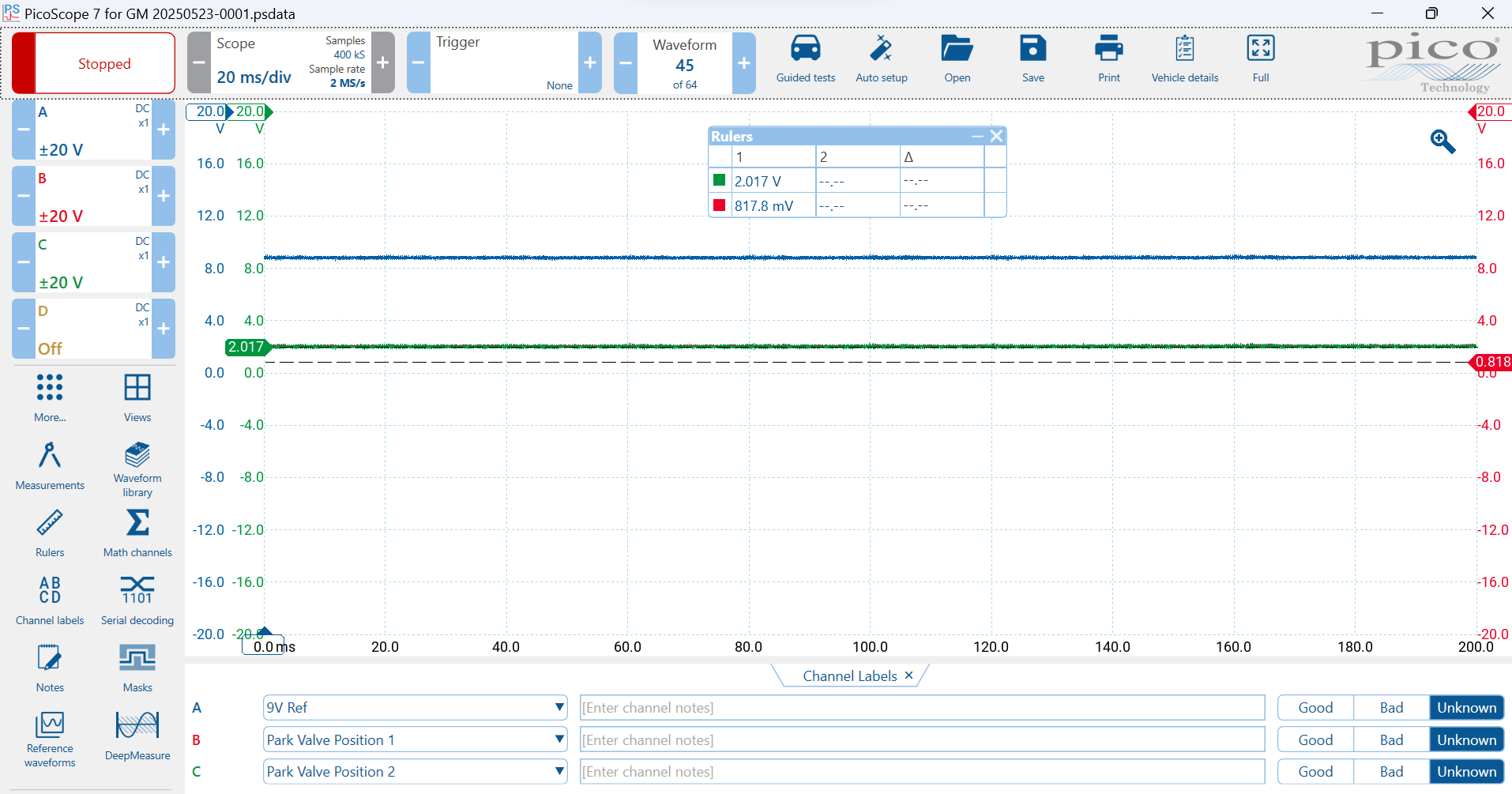

I connected an oscilloscope to these sensor circuits directly to make sure the computer module—or my brain—wasn't just going crazy.

​

​

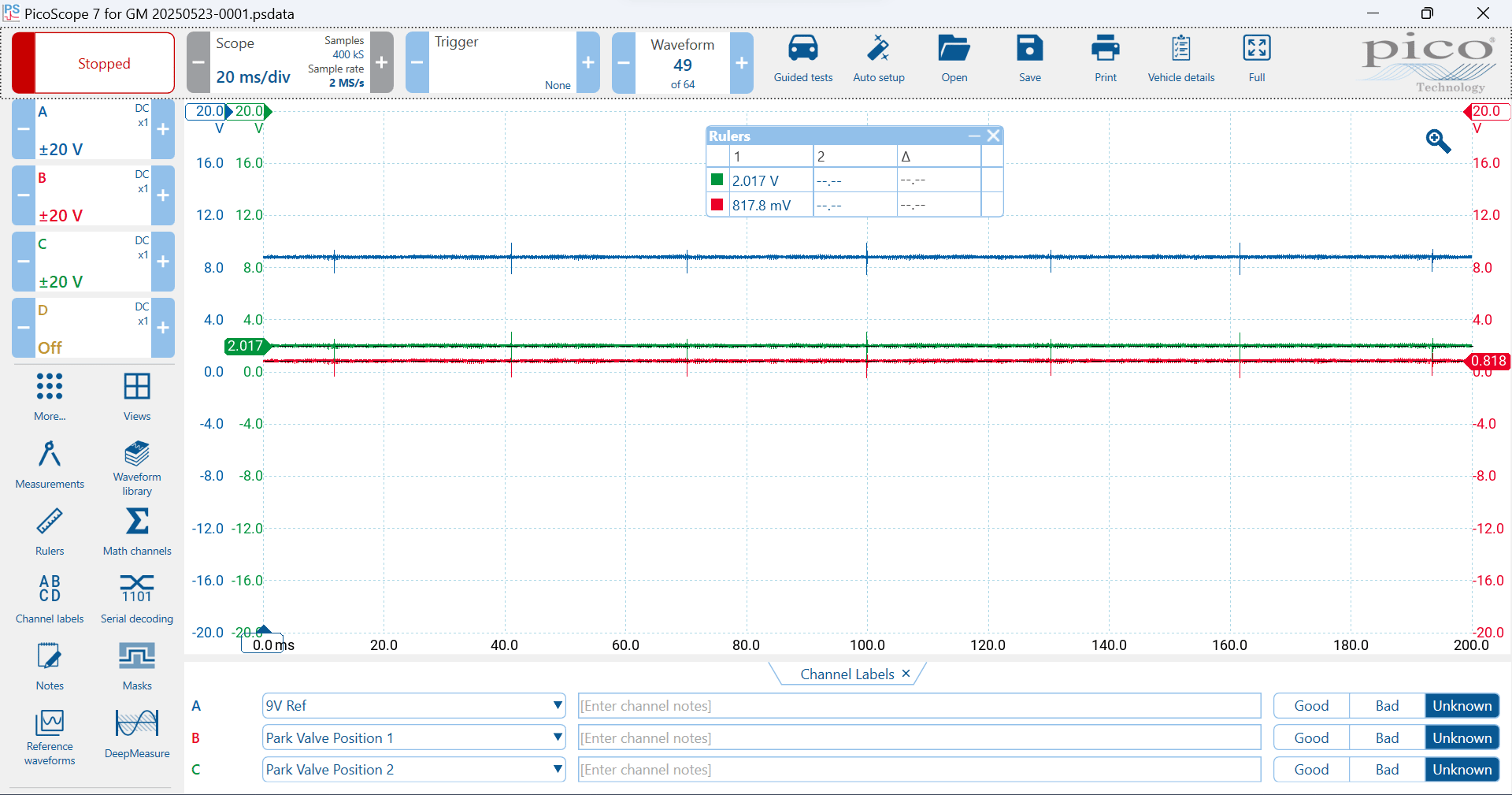

Sure enough, the sensor voltage was changing. So, something was indeed knocking this sensor reading out of whack whenever the engine auto restarts.

​

But what was it? The circuits were intact, neither was shorted to power, ground, nor any neighboring circuits.

​

I reached out into the infinite void of a large group chat of colleagues, hoping to find an answer. It wasn't until reaching out to my network the third time that someone gave me an unexpected but surprisingly helpful tip.

​

Someone casually suggested, ‘Have you checked the battery cables?’

​

The battery cables?

​

I blinked. Stared. Laughed out loud.

​

What could those cables possibly have to do with these internal transmission sensor readings? Sure buddy, I'll check those cables. I'll also make sure to check my shoelaces the next time the Wi-Fi acts up.

​

Out of options, I opened the hood and stared at the battery cables, still laughing to myself.

​

But then, I noticed something. Something didn't quite look right.

​

​

Intrigued, I walked over to another XT5 of the same model year just a few bays over from where I was working.

​

​

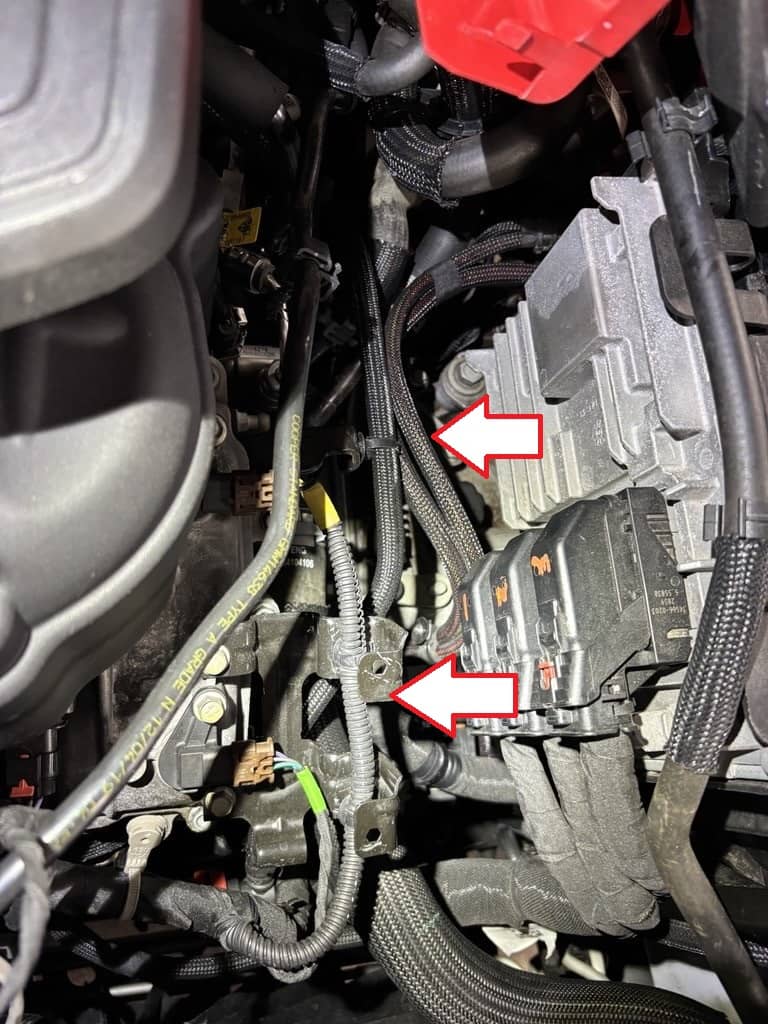

The positive cables on this like unit were routed above and secured to the top of the engine bracket, unlike the customer's vehicle.

​

Someone else has been in here, I thought to myself. And they didn't pay attention to where the positive cables are designed to go.

​

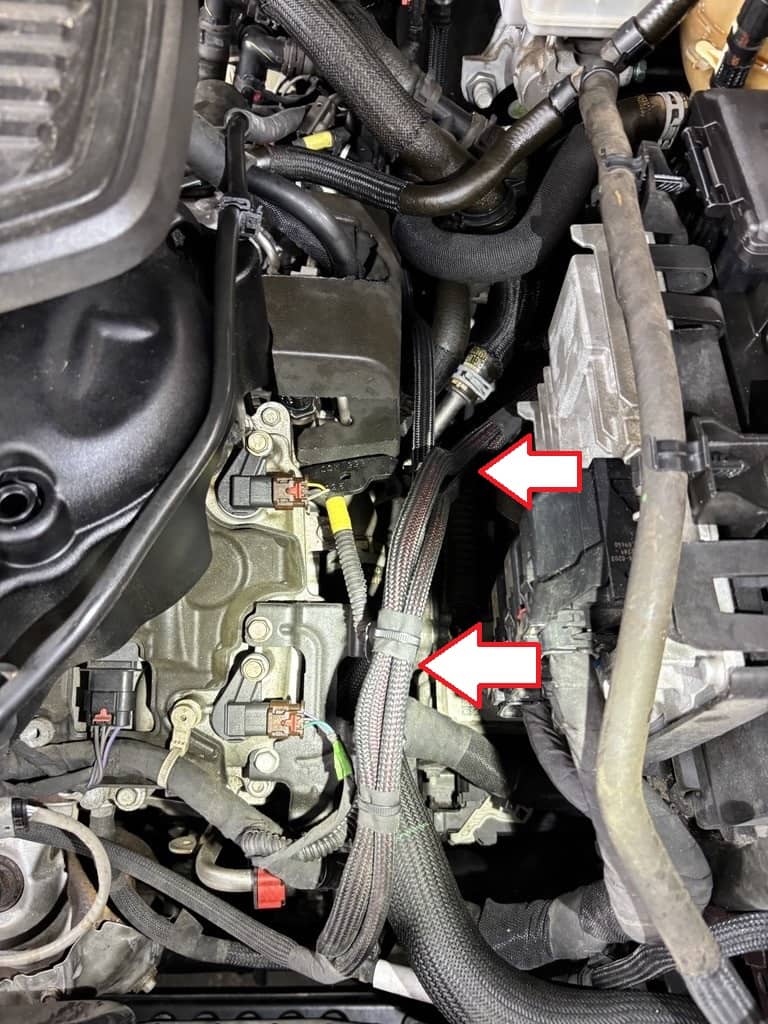

I followed the cables. Down under hoses and the under the top bracket (where it was supposed to be secured), laying instead against the edge of the transmission, and from there on out to the starter motor and alternator.

​

Then it hit me.

​

The cables were literally LAYING against the edge of the transmission case. But not just in any 'ol spot. They were positioned above the exact location where the Transmission Park Valve Position Sensors were located just inside the transmission case.

​

Now things started to make sense. I thought to myself, what if the position of the battery cables is resulting in an EMI effect when the engine auto restarts?

​

I routed these positive cables back to the proper position and drove the vehicle again through 10 more auto-stop-start cycles. No more warning messages, and the Transmission Park Valve Position Sensor values stayed the same during each restart event.

​

I was shocked. My hypothesis was right—the engine auto-restart caused a rush of current flow through the positive battery cable to the starter motor—and right next to the park valve position sensors.

​

Apparently, this rush of current was just enough EMI to knock the Sensor 1 position from a value of 'Out of Park' back into 'Park'.

​

I learned a few key valuable lessons from this case:

​

1. The little things matter. Even something as simple as where a cable is designed to be routed is important.
2. Paying attention to these little details can prevent strange anomalies like THIS one.
3. Having a community of like-minded individuals is extremely valuable, particularly when you get stuck.

​

To the guy who installed these positive cables in the wrong place: just doing a job 'good enough' is a dangerous philosophy to live by.

​
