It all began with a tick—and not the kind you pull out with tweezers.

​

Cylinder 4 was deader than a parts order on a Friday afternoon. No spark, no fire, no signs of life.

​

Compression? Perfect—all cylinders reading 210 PSI. Fuel? Flowing. Ignition? Swapped, tested, and sworn at by the technician profusely.

​

And yet, the misfire in cylinder 4 laughed this technician square in the face.

​

To add insult to injury, the starter fuse began to blow intermittently when cranking as if the engine was saying, “Nope, I’m done for the day.”

​

​

This shop had already followed a bulletin pointing them towards replacing the exhaust camshaft roller followers. They had even consulted the sacred scrolls of the Technical Assistance Center.

​

Then I got involved. I travelled to this shop and confirmed the manual compression in cylinders 3 (known good) and 4 (bad) were both reading 210 PSI during a cranking compression test. The injectors, ignition coils, and plugs had already been swapped between cylinders, and yet I stared a cylinder 4 dead-miss in the face.

​

Something isn't adding up here, I thought to myself. Air, fuel, spark, and compression (at the right timing) are all a cylinder needs to fire.

​

Curious, I plugged in my Picoscope with the pressure transducer into Cylinder 3, captured a waveform, and then plugged it into Cylinder 4.

​

I didn't expect to find anything, I just wanted to get a good visual of what was taking place inside each cylinder.

​

​

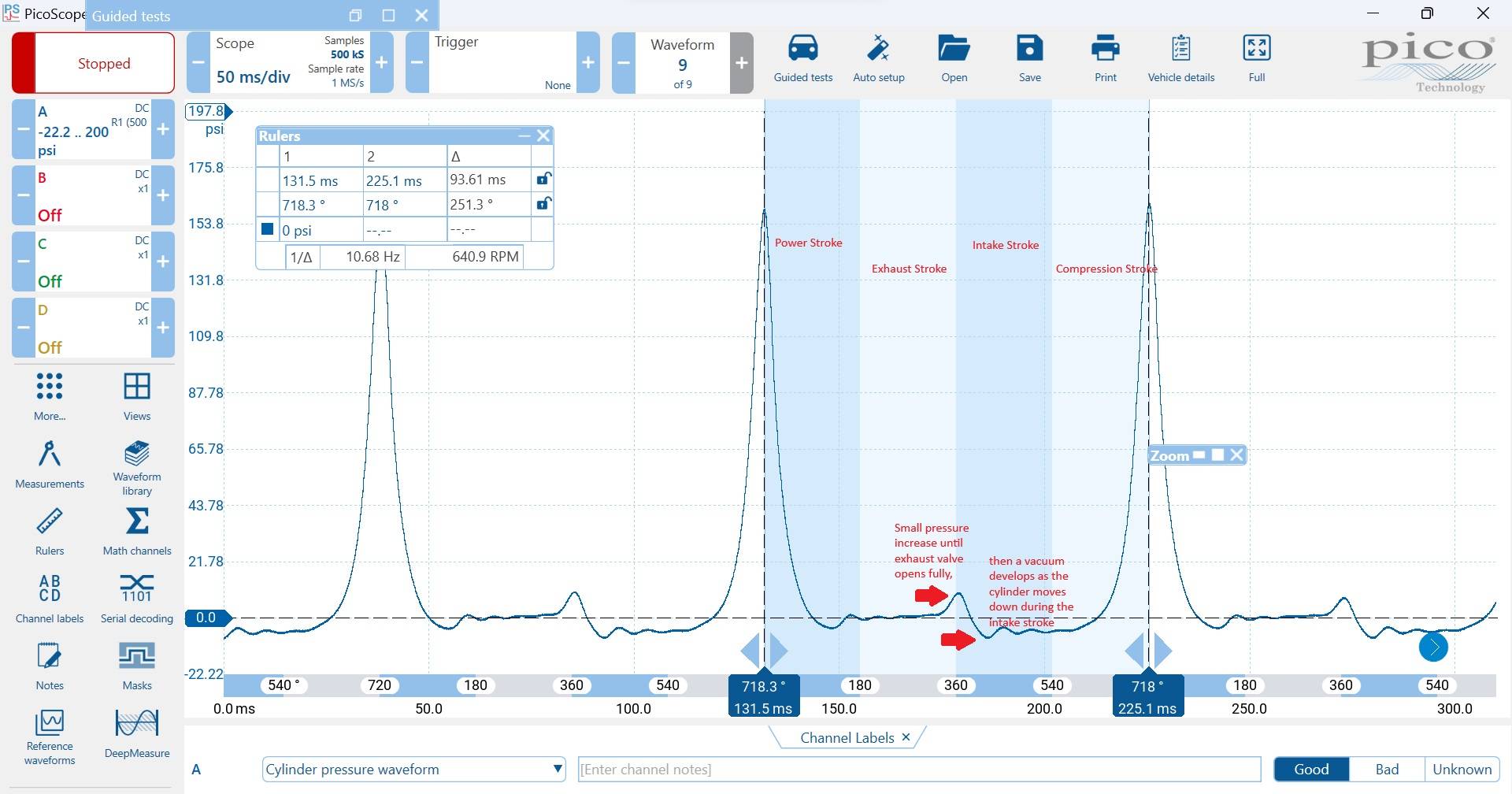

This waveform showed what I had expected to see for a good cylinder. A pressure spike between the compression and power strokes, and a slight vacuum during the intake stroke—normal operating conditions for a 4-stroke engine.

​

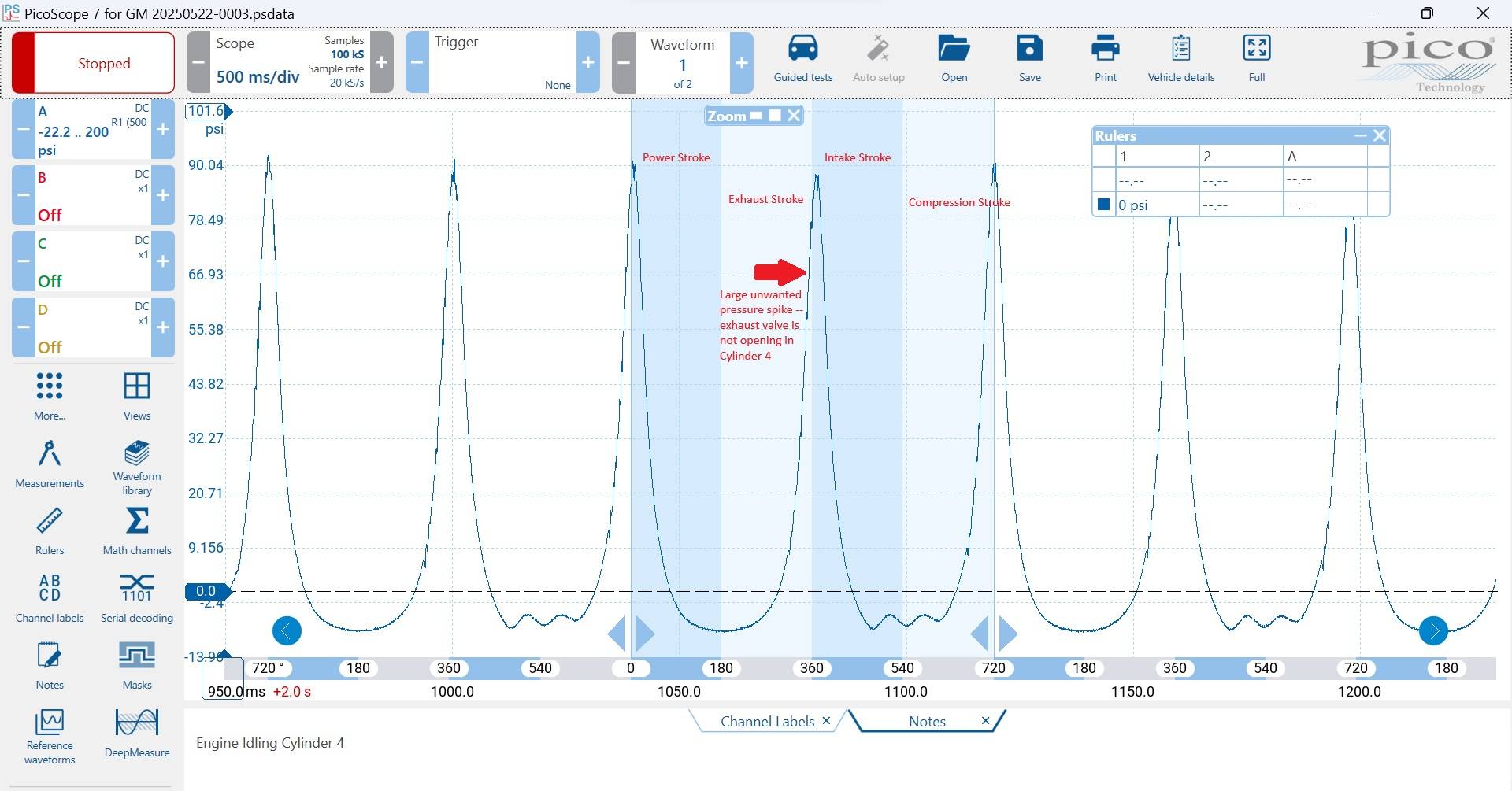

But then I looked at the Cylinder 4 waveform.

​

And at first, I was very confused.

​

​

It took me a while of staring at the waveform before I figured out what was going on.

​

I saw high spikes between the intake and exhaust strokes—no bueno.

​

The exhaust valve must not be opening, I realized. There's no other way a pressure spike like that can happen!

​

That's when it all started to add up. The "good" compression reading in Cylinder 4. The starter fuse which would blow intermittently. The ticking noise heard initially. All clues hiding the truth in plain sight.

​

The cranking compression reading in Cylinder 4 was deceptive—it looked good at first glance, but only because we technicians normally associate a fault only with LOW compression.

​

In this case, we had too much compression—and at the wrong time. Unfortunately, the cranking compression test (with a mechanical compression gauge) would never show this. And it would generate a lot of resistance for that starter motor.

​

But how could only one cylinder's exhaust valve not be opening?

​

It wasn't apparent what the root cause was until the camshaft was removed from the camshaft carrier assembly (part of the cylinder head).

​

​

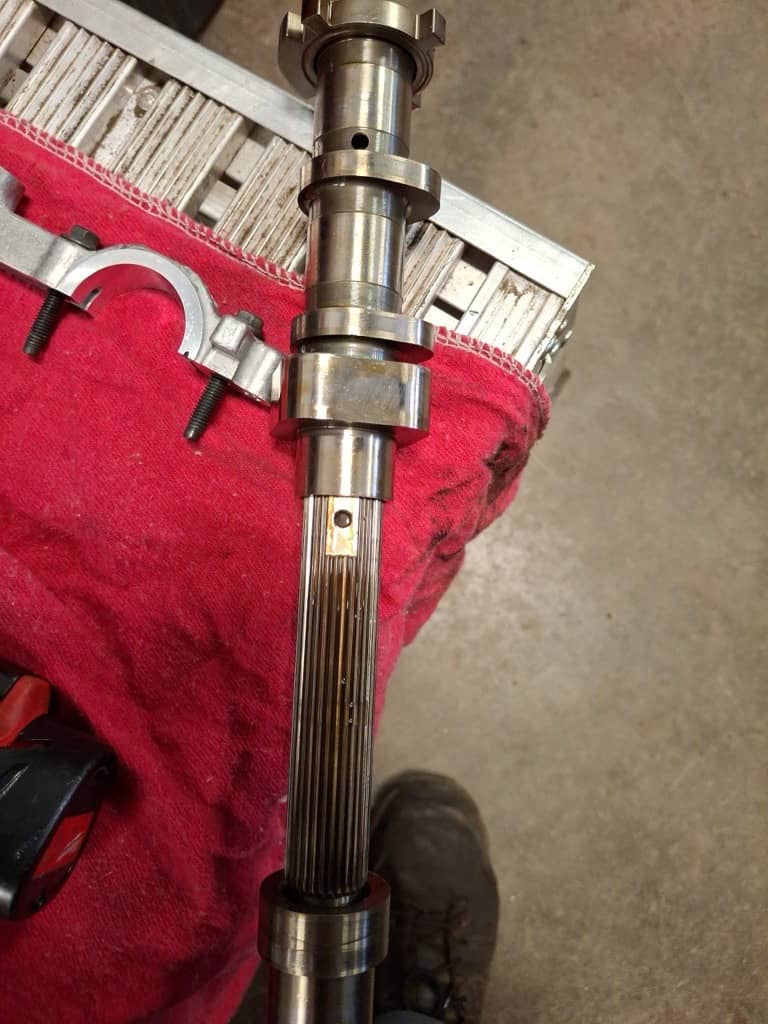

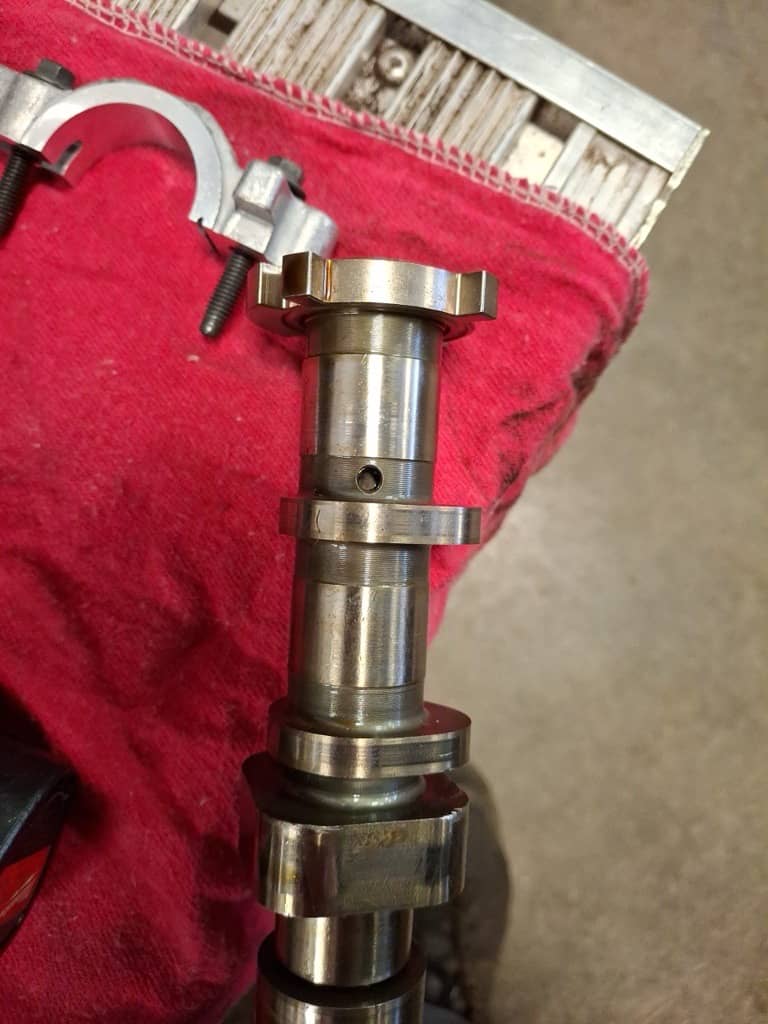

The pin in the original exhaust camshaft had walked out, allowing the camshaft to separate at one end. With a new cylinder head and camshaft carrier assembly installed, the concern was resolved. Cylinder 4 is now happy, and the starter motor fuse is now staying cool. 😎

​

Here is what I learned from this case:

​

1. Not every test is as conclusive as we typically think they are—like the compression test in this case. Be careful not to discard possible causes because one perspective gained from a particular tool appears good.
2. Not every tool is perfectly suited for every job. Even something as trusty as a mechanical compression gauge can lead you astray for a while without an understanding of the bigger picture.
3. Don't forget the value of staying curious—and don't be afraid of using a tool like the Picoscope to run a test, even if you're not sure you'll find anything. In this case, I found it right away.

​
